Photoluminescent signs explained

How photoluminescent signs work

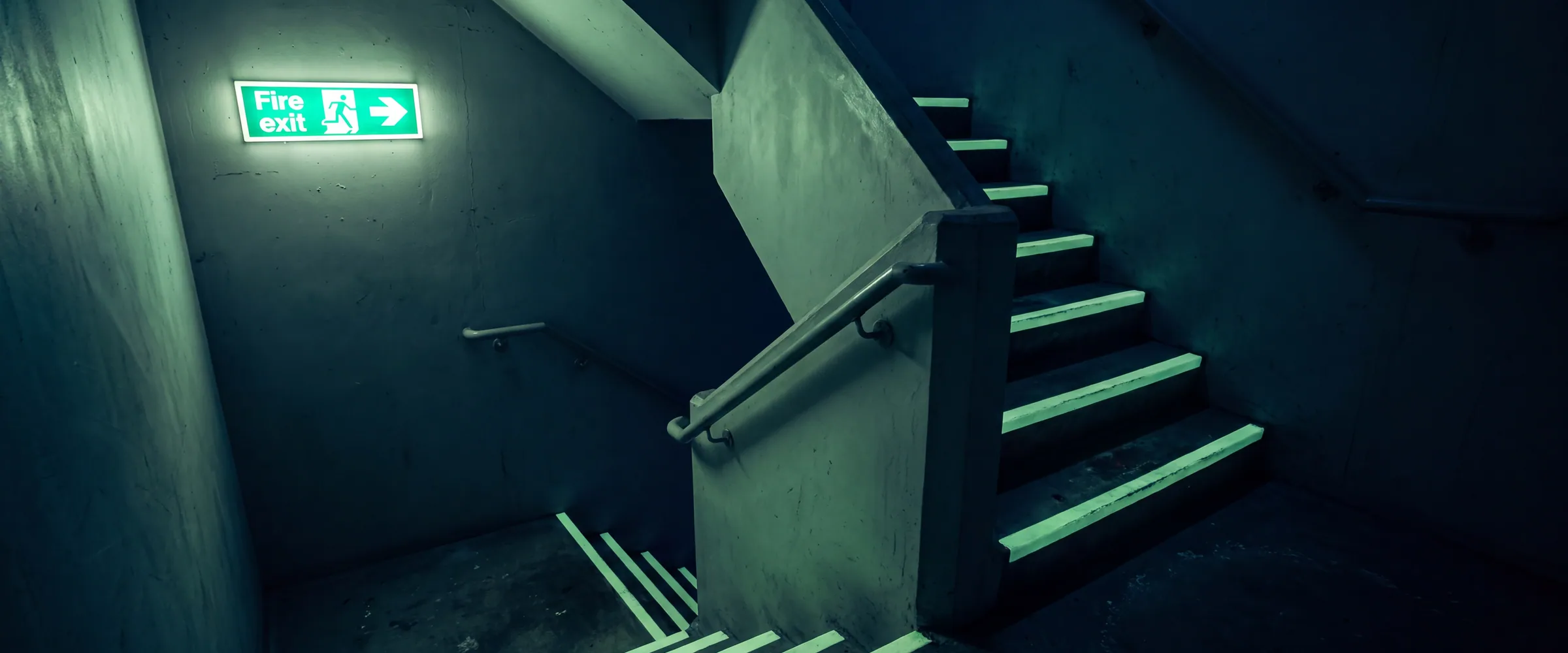

The luminescent layer in a modern photoluminescent sign is strontium aluminate doped with europium. When exposed to visible light, the phosphor crystals absorb photons and store the energy in elevated electronic states. When the ambient light source disappears, the energy is released slowly as visible light over a period of minutes to hours.

The phenomenon is called phosphorescence — distinct from fluorescence (which stops the moment the light source is removed). Strontium aluminate is the modern industry standard, replacing the older zinc sulphide phosphor that produced shorter, weaker afterglow.

The grading system: DIN 67510

Photoluminescent products are graded under the German standard DIN 67510 (also referenced in BS 5499 for UK practice). The grade defines the brightness at specific time intervals after charging:

• Class A: entry-level — sufficient for short-duration emergencies
• Class B: standard — most common for general signage
• Class C: enhanced — typical for fire exit signage in UK premises
• Class D: premium — long-duration afterglow for complex escape routes and high-risk environments

For UK fire exit signage, Class C is the standard specification — it provides 80+ minutes of recognisable afterglow after a 15-minute charge from typical office lighting.

When photoluminescent signs are the right choice

Photoluminescent signage works best in:

• Small to medium premises where the cost and complexity of full electrical illumination isn't justified
• Areas with adequate ambient light during normal operation (offices, retail, schools, hospitals)
• Supplementary signage in larger buildings — providing visibility on stairs, secondary corridors, and below-eye-level positions where smoke would obscure higher signs
• Heritage and listed buildings where electrical install is restricted or aesthetically undesirable

For larger buildings (offices over 60 occupants, hotels, hospitals, complex multi-floor sites), photoluminescent typically supplements electrical illumination rather than replacing it.

When photoluminescent isn't enough

Photoluminescent signs need ambient light to charge — they fail in:

• Permanently dim cellars, plant rooms, or vault-style storage
• Areas only lit during occupancy with motion sensors that switch off when the area is empty
• Behind-the-scenes corridors that don't see daylight or sustained interior lighting
• Long-duration evacuation scenarios (more than the photoluminescent afterglow can support)

For these areas, electrically illuminated signs with maintained or non-maintained luminaires are required. See our fire exit sign regulations guide for the full illuminated-vs-photoluminescent decision tree.

Mounting and installation

Photoluminescent signs install identically to standard signage — vinyl with adhesive backing, rigid PVC with screws or VHB tape, aluminium with screws. The photoluminescent layer is applied as a topcoat on the chosen substrate. There are no electrical connections, batteries, or maintenance contracts.

Mounting position is the same as for any fire exit sign — see our placement guide. Top edge between 1.7m and 2.4m above the floor for standard interior placement, just above door frames for above-doorway signs, and floor-level supplementary signs (0.15-0.45m) in high-smoke-risk environments.

Lifespan and replacement

The photoluminescent layer typically maintains 80%+ of original luminance for 7-10 years before noticeable degradation. After that, replace the sign — fading is gradual but eventually the afterglow drops below the brightness specified in the original DIN 67510 grading.

Mechanical lifespan of the substrate (vinyl, rigid PVC, aluminium) is independent of the photoluminescent layer. Aluminium-substrate photoluminescent signs typically outlast vinyl ones in external or high-impact environments.

Maintenance

Three things to check during periodic fire safety inspection (typically every 6 months):

• Luminance: visual check that the sign still glows after the lights go out (or use a luminance meter for quantitative measurement)
• Damage: any cracks, scuffs, or chemical damage that compromise the photoluminescent layer
• Ambient lighting: changes in normal-operation lighting (LED retrofits, lighting controls, occupancy sensors) that may have reduced charging conditions
