Confined space signage UK

Manholes, tanks, silos, chambers. The signage layer for one of the most fatal workplace activity categories in UK industry.

By Direct Signs Team · ISO 9001 certified UK manufacturer · Updated May 2026

The short answer

UK confined space signage supports the Confined Spaces Regulations 1997 by identifying entry points, communicating permit-to-work requirements, mandating PPE (RPE, harness, gas detector), and referencing rescue plans. Required at every confined space entry — manholes, tank hatches, silos, chambers, plant rooms, tunnels. Standard sign combines warning, prohibition (no unauthorised access), and mandatory PPE elements.

The legal framework

  • Confined Spaces Regulations 1997 — the foundation regulation
  • HSE Approved Code of Practice L101 — Safe work in confined spaces
  • Health and Safety (Safety Signs and Signals) Regulations 1996 — signage compliance
  • Permit-to-Work systems — typically governed by company management procedures
  • For specific industries: sewerage (Water Industry Act), petrochemical (DSEAR), mining (M&Q Regs)

HSE statistics: confined space incidents are rare but disproportionately fatal — typically 15-30% fatality rate when an incident occurs. Effective signage at entry is one of the most critical controls.

What confined space signage must communicate

A complete confined space sign communicates four things:

  1. Hazard identification — yellow triangle warning, "confined space"
  2. Access control — "entry by permit only" or "no unauthorised access" (P012)
  3. Required controls — atmosphere testing, RPE, harness, gas detector
  4. Emergency reference — rescue plan location, emergency contact

For high-risk spaces, expand each element. For lower-risk known confined spaces (e.g. routine inspection chambers), a single combined sign is typical.

Common confined space sign elements

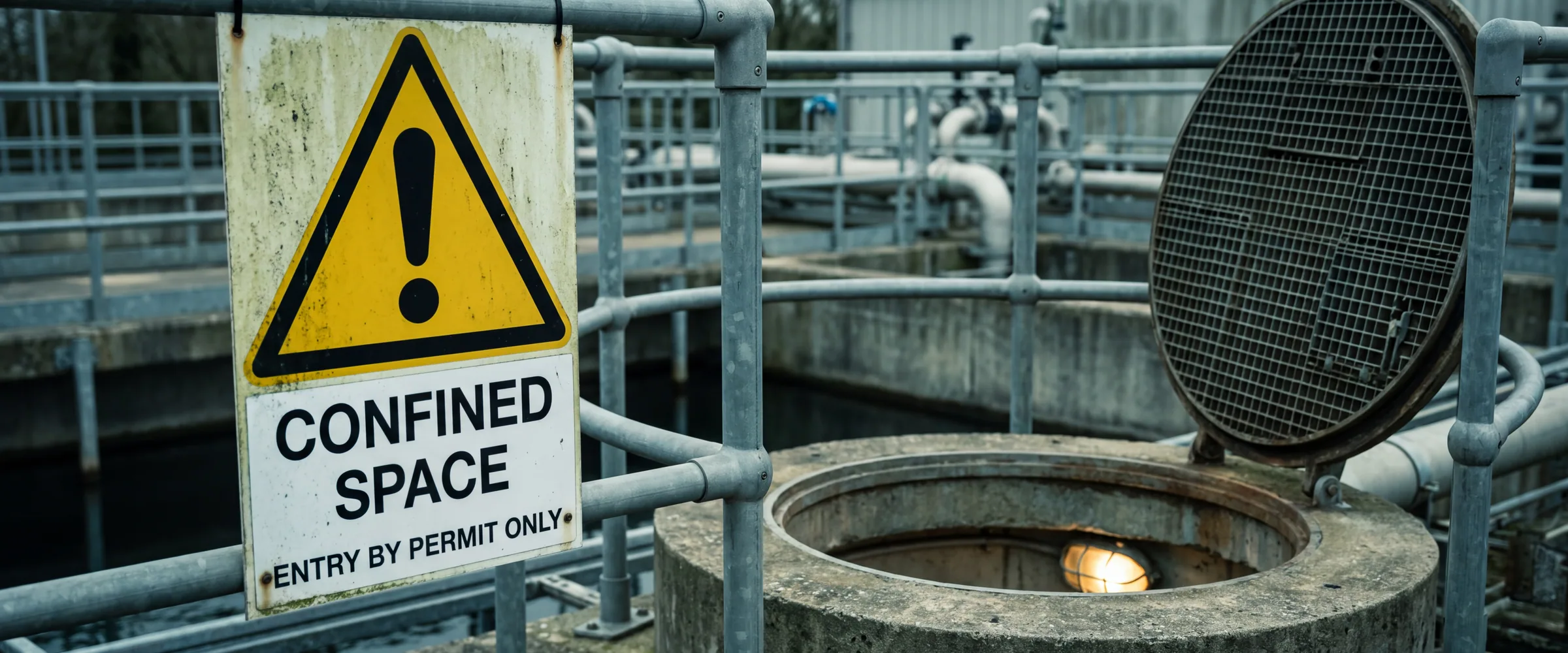

  • "Confined space — entry by permit only" — the primary identification sign
  • P012 No unauthorised access — red prohibition
  • "Atmosphere must be tested before entry" — mandatory procedural reminder
  • M016 Wear RPE — respiratory protection
  • M018 Wear safety harness — for fall risk during entry/egress
  • "Gas detector required" mandatory — typically combined with RPE
  • "Rescue plan in place — see X" — references the rescue procedure document
  • Emergency contact — duty holder, control room, emergency services
  • Asset/space reference — for permit traceability

Permit-to-work signage

The permit-to-work system is the procedural backbone of confined space safety. Signage supports it by:

  • Referencing the permit at entry — "entry by permit only — see [permit board location]"
  • Permit display board — typically near the entry point or in a duty room. Shows current permit, validity period, authorised workers, atmosphere test results, rescue arrangements.
  • "Permit cancelled — work complete" status indicator — to prevent re-entry without re-authorisation
  • Atmosphere test record sticker — at the lid showing last test date, results, and tester signature

Sector-specific applications

Water and wastewater: manholes, sewer chambers, treatment tanks, sludge digesters. The most common confined space environment in UK utilities. Often includes biological hazard signage.

Energy: substation pits, transformer cubicles, gas pressure reduction stations, BESS containers. Combined with electrical safety and DSEAR signage.

Petrochemical and oil & gas: storage tanks, process vessels, pipelines. The highest-spec confined space environment, often requiring DSEAR, electrical, and rescue-team-on-standby signage.

Construction: excavations, pile shafts, basement formwork, lift shafts during build. Often temporary — portable or removable confined space signage.

Manufacturing: mixing vessels, silos (grain, plastics, chemicals), large process equipment requiring internal cleaning.

Telecoms and utilities ducts: cable ducts, fibre chambers, cooling-water culverts.

Manhole and chamber lid markings

Lid plates on permanent confined space access points typically include:

  • Asset owner (utility name)
  • Asset reference (chamber ID)
  • "Confined space — authorised entry only"
  • Emergency contact
  • For pressurised systems: "do not lift while pressurised"

Engraved anodised aluminium or stainless steel lid plates are the durability standard for utility-network manholes.

Rescue plan signage

Confined Spaces Regulation 5 requires "suitable and sufficient arrangements for the rescue of persons in the event of an emergency, whether or not arising out of a specified risk". Signage layer:

  • Rescue plan reference — "Rescue plan: see permit board / control room"
  • Rescue equipment location — tripod, winch, harness, breathing apparatus, comms
  • Standby person required — mandatory reminder ("entry attendant required")
  • Self-rescue equipment — escape sets, where the standard requires them
  • Emergency contact and 999 protocol — including grid reference for remote sites

Materials for confined space signage

  • Aluminium composite — permanent external installation
  • Anodised aluminium / engraved — manhole and chamber lid plates
  • Weatherproof self-adhesive vinyl — temporary or construction-site installation
  • Photoluminescent — entry points where lighting may fail or for emergency egress reference
  • Removable adhesive labels — for atmosphere test date stickers

Browse confined space signage

Quick answers

Confined space sign FAQs

What is a confined space?
Per the Confined Spaces Regulations 1997, a confined space is any place that is substantially enclosed (though not always entirely) and where there is a reasonably foreseeable specified risk — including loss of consciousness from gases/fumes/vapours/lack of oxygen, drowning from increased liquid level, asphyxiation from free-flowing solids, fire or explosion, or loss of consciousness from raised body temperature. Examples: storage tanks, silos, sewers, manholes, ducts, plant rooms, tunnels, and some excavations.

When is confined space signage required?
At every entry point to a known confined space — manholes, tank hatches, chamber covers, plant room doors, silo access. The Regulations require employers to identify confined spaces, assess risks, and ensure safe systems of work. Signage is the first line of defence: warning unauthorised persons not to enter and reminding authorised workers of the controls (permit-to-work, atmosphere testing, rescue plan).

What does a confined space sign look like?
Typically a yellow triangular warning sign with "Confined space — entry by permit only" wording, often combined with a red prohibition "no unauthorised access" (P012) and a mandatory PPE block (RPE, harness, gas detector). For high-risk spaces, additional signs cover atmosphere requirements, rescue plan reference, and emergency contact.

What is a permit-to-work for confined spaces?
A documented authorisation system. Before entry: a competent person assesses the space, specifies controls (atmosphere testing, ventilation, PPE, communications, rescue plan), authorises named workers for a specified period, and signs the permit. Signage at entry references the permit system — typically "Entry by permit only — see [location] for current permit". Permits are time-limited and must be cancelled when work is complete.

Do utility manholes need signage?
Yes — every workplace confined space, including manholes on utility networks, water and wastewater chambers, telecoms ducts, and electrical substation pits. Public-realm manholes (in highways) typically have lid markings showing utility owner, asset reference, and "confined space — authorised entry only" wording. Workplace manholes need full BS EN ISO 7010 confined space signage at the lid and at the access route.

What PPE signs go with confined space?
Depends on the assessed hazard, but typically includes: M016 wear respiratory protection (RPE), M018 wear safety harness (for fall risk during entry), M013 gas detector required, and often M001/M014 PPE basics (eye and head protection). Combined PPE entry boards are common at high-volume confined space sites.

What materials are best for confined space signage?
Confined space signs are typically external, weather-exposed, and on rough surfaces (manhole covers, tank exteriors). Aluminium composite for permanent installation, weatherproof self-adhesive vinyl for temporary site work, anodised aluminium for engraved manhole/chamber lid plates. Photoluminescent specifications for entry points where lighting may fail. For sites with periodic recertification, removable adhesive for date stickers showing last atmosphere test.
